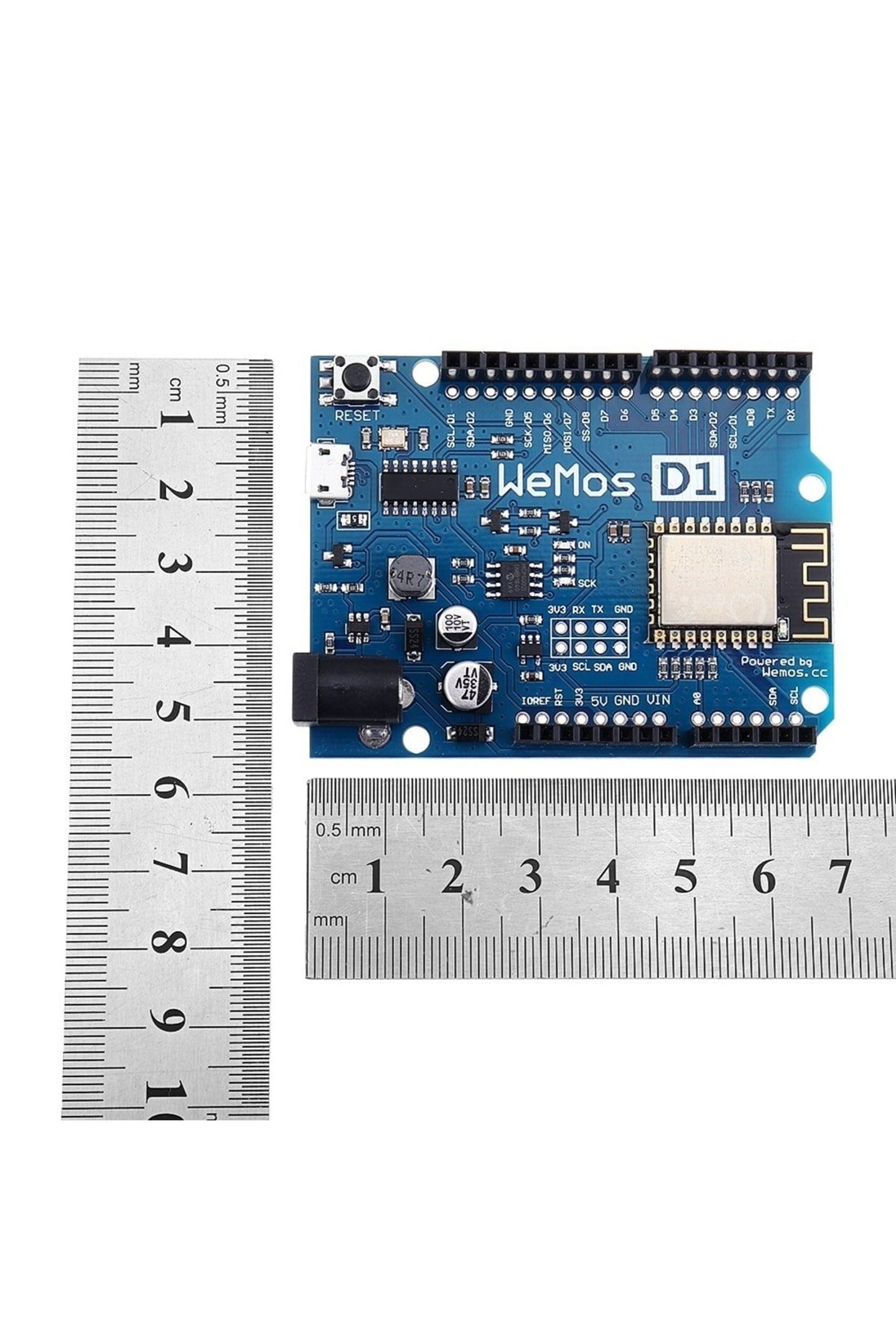

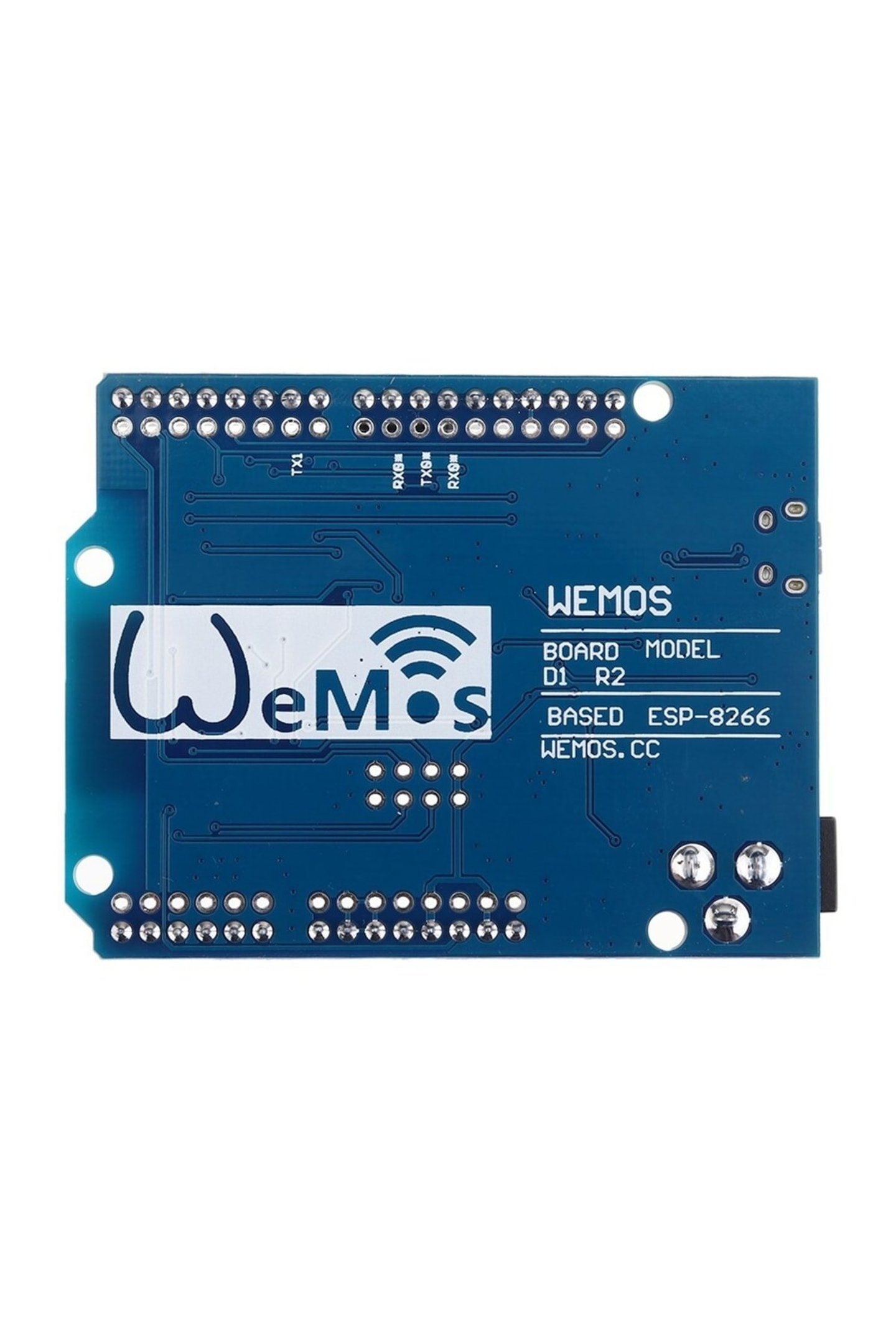

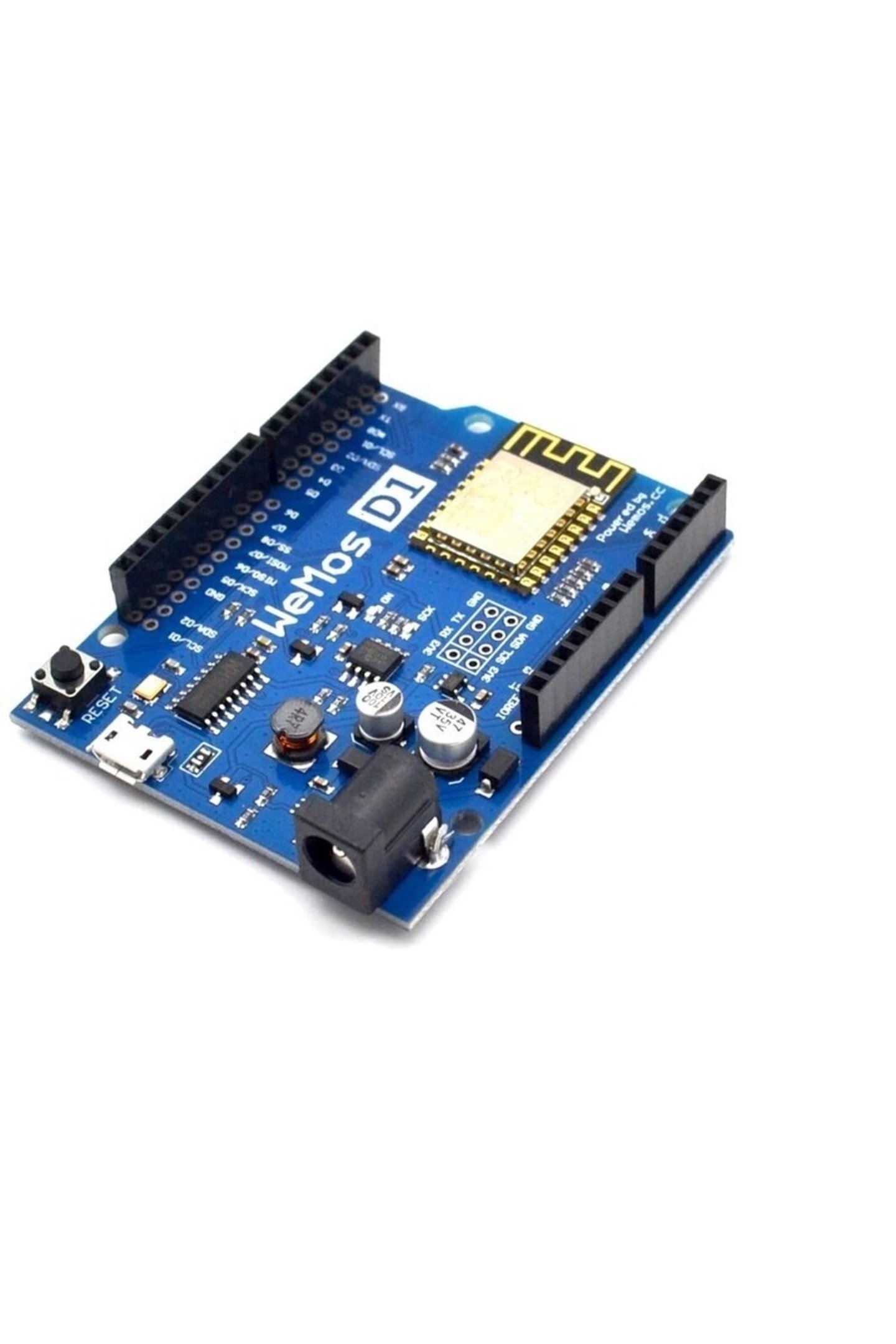

EmAyCenter Wemos D1 R2 Sürümü Wifi Esp8266 Geliştirme Kartı Uyumlu Uno Programı

<div id="rich-content-wrapper"> <div> <div> <span><span><strong>Wemos D1 R2 Sürümü WiFi ESP8266 Geliştirme Kartı Uyumlu UNO Programı</strong></span></span> </div> <div> <span><strong>D1 R2, ESP-8266EX tabanlı bir mini wifi kartıdır.</strong></span> </div> <div> &nbsp; </div> <div> <span>11 dijital giriş/çıkış pini, tüm pinler interrupt/pwm/I2C/one-wire desteklidir (D0 hariç)</span> </div> <div> <span>1 analog giriş(3.3V maksimum giriş)</span> </div> <div> <span>Bir Mikro USB bağlantısı</span> </div> <div> <span>Bir güç girişi, 9-24V güç girişi.</span> </div> <div> <span>İle uyumlu</span> </div> <div> <div> <span>İle uyumlu nodemcu</span> </div> <div> &nbsp; </div> <h3>&nbsp;</h3> <div> <ul> </ul> </div> <h3><span>NodeMcu</span></h3> <div> <ul> </ul> </div> </div> <div> <div> <span><strong>Teknik özellikler:</strong></span> </div> <table> <tbody> <tr> <td><span>mikrodenetleyici</span></td> <td><span>ESP-8266EX</span></td> </tr> <tr> <th><span>Çalışma gerilimi</span></th> <th><span>3.3V</span></th> </tr> <tr> <td><span>Dijital G/Ç Toplu iğneleri</span></td> <td><span>11</span></td> </tr> <tr> <th><span>Analog Giriş Toplu iğneleri</span></th> <th><span>1</span></th> </tr> <tr> <td><span>Saat hızı</span></td> <td><span>80MHz/160MHz</span></td> </tr> <tr> <th><span>flaş</span></th> <th><span>4 milyon bayt</span></th> </tr> <tr> <td><span>Uzunluk</span></td> <td><span>68,6 mm</span></td> </tr> <tr> <th><span>Genişlik</span></th> <th><span>53.4 mm</span></th> </tr> <tr> <td><span>Ağırlık</span></td> <td><span>25g</span></td> </tr> </tbody> </table> <div> &nbsp; </div> <div> <table> <thead> <tr> <th><span>Toplu iğne</span></th> <th><span>İşlev</span></th> <th><span>ESP-8266 Toplu iğne</span></th> </tr> </thead> <tbody> <tr> <td><span>TX</span></td> <td><span>TXD</span></td> <td><span>TXD</span></td> </tr> <tr> <th><span>RX</span></th> <th><span>RXD</span></th> <th><span>RXD</span></th> </tr> <tr> <td><span>A0</span></td> <td><span>Analog giriş, maksimum 3.3V giriş</span></td> <td><span>A0</span></td> </tr> <tr> <th><span>D0</span></th> <th><span>i</span></th> <th><span>GPi16</span></th> </tr> <tr> <td><span>D1</span></td> <td><span>i, SCL</span></td> <td><span>GPi5</span></td> </tr> <tr> <th><span>D2</span></th> <th><span>i, SDA</span></th> <th><span>GPi4</span></th> </tr> <tr> <td><span>D3</span></td> <td><span>i,Pull-up</span></td> <td><span>GPi0</span></td> </tr> <tr> <th><span>D4</span></th> <th><span>i,pull-up, BUILTIN_LED</span></th> <th><span>GPi2</span></th> </tr> <tr> <td><span>D5</span></td> <td><span>i, SCK</span></td> <td><span>GPi14</span></td> </tr> <tr> <th><span>D6</span></th> <th><span>i, MISO</span></th> <th><span>GPi12</span></th> </tr> <tr> <td><span>D7</span></td> <td><span>i, MOSI</span></td> <td><span>GPi13</span></td> </tr> <tr> <th><span>D8</span></th> <th><span>i,pull-down, SS</span></th> <th><span>GPi15</span></th> </tr> <tr> <td><span>G</span></td> <td><span>toprak</span></td> <td><span>GND</span></td> </tr> <tr> <th><span>5V</span></th> <th><span>5V</span></th> <th><span>-</span></th> </tr> <tr> <td><span>3V3</span></td> <td><span>3.3V</span></td> <td><span>3.3V</span></td> </tr> <tr> <th><span>RST</span></th> <th><span>Sıfırla</span></th> <th><span>RST</span></th> </tr> </tbody> </table> </div> <p><span>*All i have interrupt/pwm/I2C/one-wire supported(except D0)<br> <strong>Programlama:</strong></span></p> <div> <span>D1 R2, otomatik programlama için bir mikro USB'ye sahiptir.</span> </div> <div> <span>Ayrıca OTA kullanarak programlayabilirsiniz.</span> </div> <div> <span>Uyarılar:</span> </div> <div> <span><strong>All i is work at 3.3V.</strong></span> </div> </div> <div> <span><strong>Paket içeriği:</strong><br> 1 x D1 R2 WiFi ESP8266 Geliştirme Kartı</span> </div> </div> </div>
